| Control Interface | HMI |
| Connectivity | Wired |
| Phase | Single |
| IP Rating | IP 20 |
| Model Name/Number | MOD-DIM-2P |
| Number Of Connection | 2 |
| Voltage | 200-240V |
| Country of Origin | Made in India |
| Communication Interface and Protocol | RS485 & MODBUS RTU |
| Dimension | 142.3 (L) X 90.5 (H) X62 (D) mm [8 DIN Units] |
| Edge Selection for Dimming | Leading And Trailing Edge |
| Type of Device | Electric Operation Control Device |
Overview

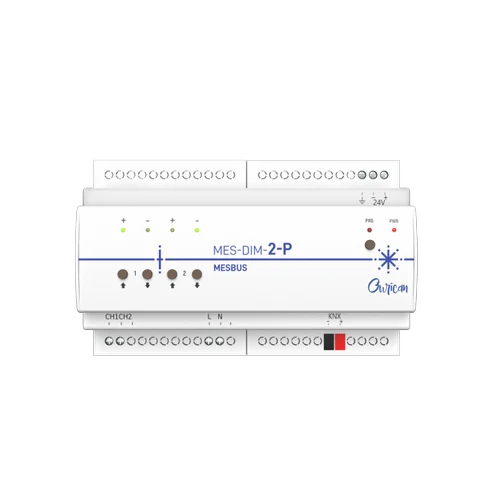

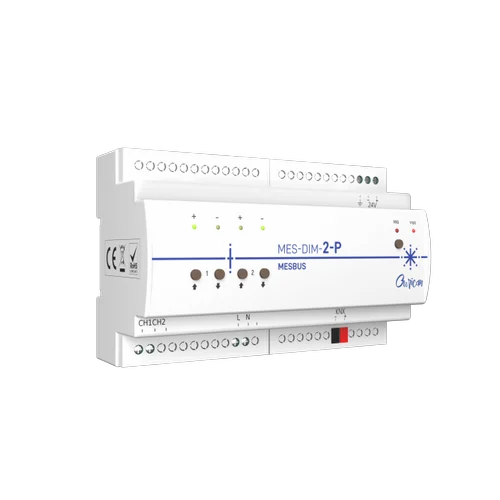

- 2 Channel Phase Cut Dimmer For Incandescent And Led Lamps
- Manual Output Operation With Push Button And Led Status Indicator
- Led Indication For Communication And Power Status
- Dip Switch For Modbus Configuration
- Din Rail Mount Assembly No Need Of Any software
- High Speed Modbus Rtu (Slave) Communication
