| Color | White |
| Power | 220 V AC |
| Lighting Color | Warm White |
| Usage/Application | Automation Use |
| Brand | Ourican |
| Shape | Rectangular |
| Frequency | 50 Hz |

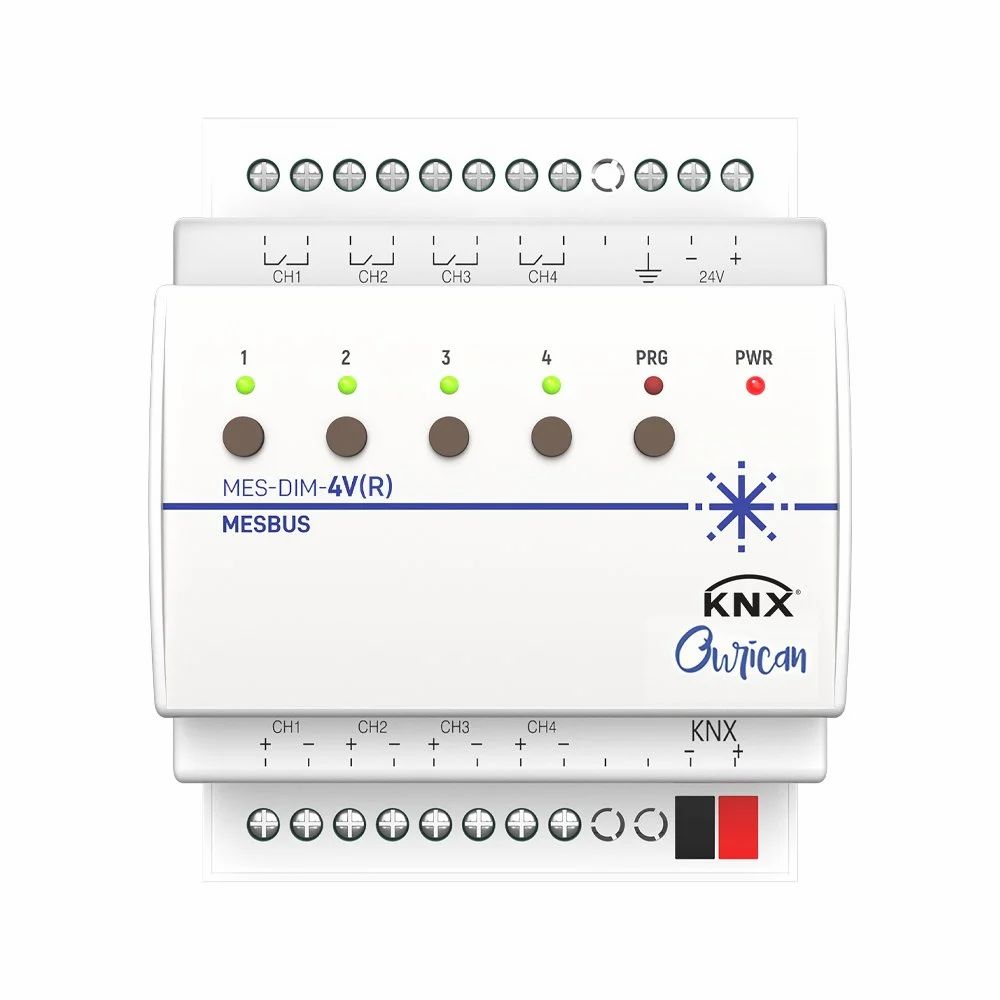

4 Channel Analog dimmer compatible with most analog dimmable drivers available. Multiple drivers can be connected over each channel. Dimming parameters are programmable over ETS.
Overview
- • 4 Channels of 0 - 10V output and 4 channels for relay switching
- • Manual output operation with push button and LED status indicator
- • 10 scene functionality
- • Possibility of connecting different phases in different outputs
- • Programming button and LED
- • DIN rail mount assembly
- • Output Type: Relay based control device
- • Output Relay Rating: 4000VA
- • Max number of drivers per channel: 7
- • Maximum Inrush Current: 100 A (Resistive Load)
- • Outputs per Common: 1 Output (Switching) 2 Outputs (Shutter)
- • Dimension: 71.3 (L) X 90.5 (H) X 62 (D) mm (4 DIN units)
