Applications
Edible oil , ghee, vanaspathi , pasteurised fruit pulp , mango pulp , lubricating oil , mayonnaise , paint & varnishes.
Electrical requirement
Input supply: 415 V AC, 50 Hz, 3 phase 4 wire
Connected load: 10 KW
Optional accessories
Servo voltage stabilizer
Water cooler
Photo sensor & batch coding
Compressor (only for model GP- 5000-OS)
Cooling
Water Flow rate: 100 litter/hour
Temperature range: 6 degree to 8 degree maintained
Minimum pressure : 0.5 bar

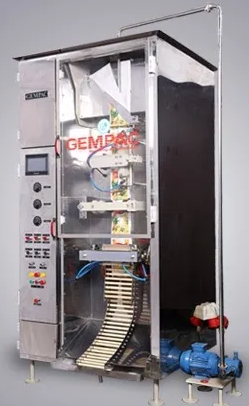

Overview
- Category: industrial , machinery
- High accuracy and higher consistency
- Contact parts full of food grade materials
- Operator friendly PLC controller
- Full mechanical machine. No requirement of air (only for GP-5000-OS model)
- Suitable for large range of film with minimal settings
- End of film rol facility with parking mode inter locks
- heavy body and it covered with quality S.S sheet
- Specilly designed film roll unwinding system for smooth pouch pulling operation
- Quantity can be adjusted with a single nob
